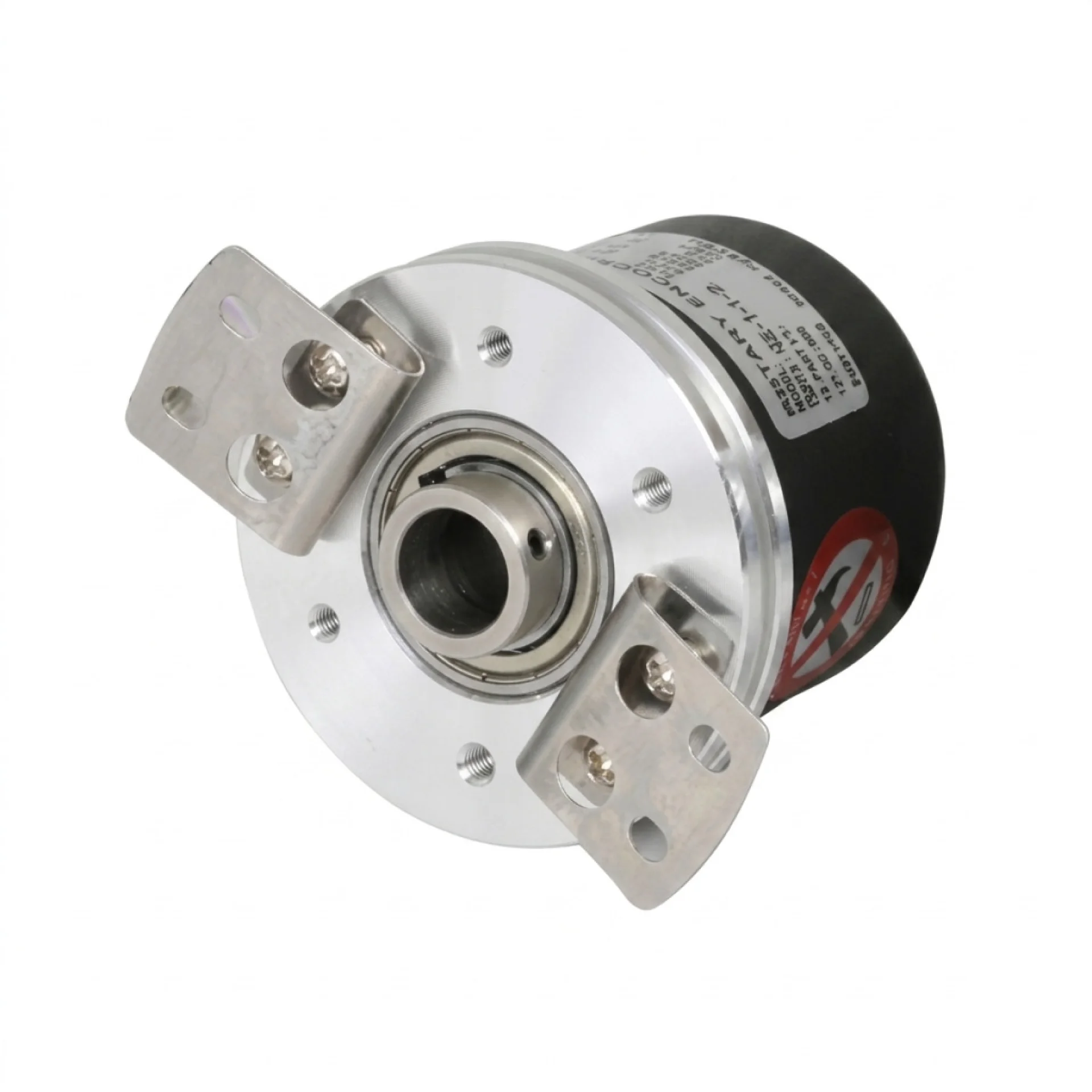

E58HB Serisi Enkoderler
Ürün Kodu Çözünürlük (P/R) Delik Çapı Çıkış Fazları Çıkış Çalışma Gerilimi E58HB12-1-2-T-[5,24] 1 Ø12mm A, B Totem Pone 5: 5VDC 24: 12...Ürün Açıklaması
| Ürün Kodu | Çözünürlük (P/R) | Delik Çapı | Çıkış Fazları | Çıkış | Çalışma Gerilimi |
| E58HB12-1-2-T-[5,24] | 1 | Ø12mm | A, B | Totem Pone | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-2-2-T[5,24] | 2 | Ø12mm | A, B | Totem Pone | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-5-2-T-[5,24] | 5 | Ø12mm | A, B | Totem Pone | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-12-2-T-[5,24] | 12 | Ø12mm | A, B | Totem Pone | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-1-2-N-[5,24] | 1 | Ø12mm | A, B | NPN Açık Kolektör | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-2-2-N-[5,24] | 2 | Ø12mm | A, B | NPN Açık Kolektör | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-5-2-[5,24] | 5 | Ø12mm | A, B | NPN Açık Kolektör | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-12-2-N-[5,24] | 12 | Ø12mm | A, B | NPN Açık Kolektör | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-1-2-V-[5,24] | 1 | Ø12mm | A, B | Voltaj | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-2-2-V-[5,24] | 2 | Ø12mm | A, B | Voltaj | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-5-2-V-[5,24] | 5 | Ø12mm | A, B | Voltaj | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-12-2-V-[5,24] | 12 | Ø12mm | A, B | Voltaj | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-1-4-L-5 | 1 | Ø12mm | A, B | Line Driver | Line Driver: 5VDC |
| E58HB12-2-4-L-5 | 2 | Ø12mm | A, B | Line Driver | Line Driver: 5VDC |
| E58HB12-5-4-L-5 | 5 | Ø12mm | A, B | Line Driver | Line Driver: 5VDC |
| E58HB12-12-4-L-5 | 12 | Ø12mm | A, B | Line Driver | Line Driver: 5VDC |
| E58HB12-10-3-T-[5,24] | 10 | Ø12mm | A, B, Z | Totem Pone | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-15-3-T-[5,24] | 15 | Ø12mm | A, B, Z | Totem Pone | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-20-3-T-[5,24] | 20 | Ø12mm | A, B, Z | Totem Pone | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-23-3-T-[5,24] | 23 | Ø12mm | A, B, Z | Totem Pone | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-25-3-T-[5,24] | 25 | Ø12mm | A, B, Z | Totem Pone | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-30-3-T-[5,24] | 30 | Ø12mm | A, B, Z | Totem Pone | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-30-3-T-[5,24] | 35 | Ø12mm | A, B, Z | Totem Pone | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-40-3-T-[5,24] | 40 | Ø12mm | A, B, Z | Totem Pone | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-45-3-T-[5,24] | 45 | Ø12mm | A, B, Z | Totem Pone | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-50-3-T-[5,24] | 50 | Ø12mm | A, B, Z | Totem Pone | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-60-3-T-[5,24] | 60 | Ø12mm | A, B, Z | Totem Pone | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-75-3-T[5,24] | 75 | Ø12mm | A, B, Z | Totem Pone | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-100-3-T-[5,24] | 100 | Ø12mm | A, B, Z | Totem Pone | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-120-3-T-[5,24] | 120 | Ø12mm | A, B, Z | Totem Pone | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-125-3-T-[5,24] | 125 | Ø12mm | A, B, Z | Totem Pone | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-150-3-T-[5,24] | 150 | Ø12mm | A, B, Z | Totem Pone | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-192-3-T-[5,24] | 192 | Ø12mm | A, B, Z | Totem Pone | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-200-3-T-[5,24] | 200 | Ø12mm | A, B, Z | Totem Pone | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-240-3-T-[5,24] | 240 | Ø12mm | A, B, Z | Totem Pone | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-250-3-T-[5,24] | 250 | Ø12mm | A, B, Z | Totem Pone | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-256-3-T-[5,24] | 256 | Ø12mm | A, B, Z | Totem Pone | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-300-3-T-[5,24] | 300 | Ø12mm | A, B, Z | Totem Pone | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-360-3-T-[5,24] | 360 | Ø12mm | A, B, Z | Totem Pone | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-400-3-T-[5,24] | 400 | Ø12mm | A, B, Z | Totem Pone | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-500-3-T-[5,24] | 500 | Ø12mm | A, B, Z | Totem Pone | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-512-3-T-[5,24] | 512 | Ø12mm | A, B, Z | Totem Pone | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-600-3-T-[5,24] | 600 | Ø12mm | A, B, Z | Totem Pone | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-800-3-T-[5,24] | 800 | Ø12mm | A, B, Z | Totem Pone | 5: 5VDC 24: 12 - 24VDC |
| E58HB12-1000-3-T-[5,24] | 1000 | Ø12mm |
