Arttırılmış hız
IND560x ultra hızlı A/D çevrim hızına ve üstün TraxDSP™ filtre özelliğine sahiptir.
Grafik LCD ekran
SmartTrac™ grafik göstergesi sayesinde operatörler için kolay
ve hatasız kullanım imkanı sağlar.
Dolum kontrol prosesleri
Dahili I/O opsiyonları ile direkt olarak tehlikeli sahalarda
kullanımı ile otomatik yada yarı-otomatik dolum sistemleri için idealdir.
Data transferi
ACM500 modül ile güvenli sahada çeşitli arayüz imkanı vardır.

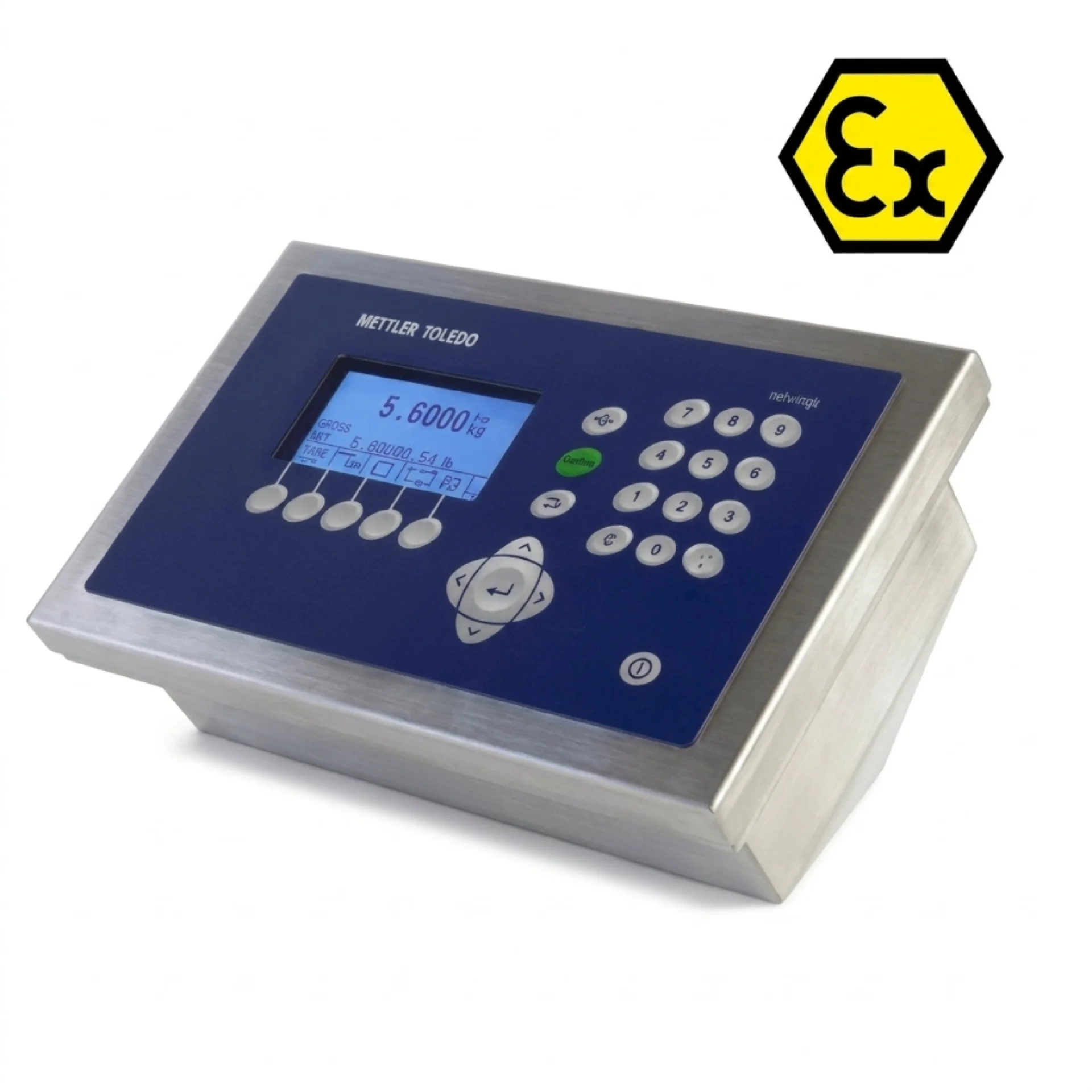

The intrinsically safe IND560x weighing terminal brings uncompromising power and versatility into Division 1, Zone 1 and Zone 21 classified areas. Choose from analog or digital weighing technologies and communicate via serial, Ethernet and a variety of PLC interfaces. Easily program the feature-rich IND560x or create custom software applications. Whatever the need, the IND560x is the perfect solution for hazardous area weighing.
Enclosure dimensions(H x W x D) |
Panel mount: 160 x 265 x 92 mm (6.3 x 10.4 x 3.6 in.) Harsh environment/desk/wall: 184 x 289 x 160 mm (7.2 x 11.4 x 6.3 in.) |
||
Enclosure construction/environmental protection |
Panel mount: Stainless steel front panel, aluminum chassis. Certified IP65. Low profile front panel reduces contaminationHarsh environment: Full stainless steel housing. Certified IP69k, IP68, IP65 |
||
Operating environment |
-10°C to 40°C (14°F to 104°F), 10% to 95% relative humidity, non-condensing |
||
Display |
128 x 64 dot matrix Liquid Crystal Display with backlight standard. 21mm high weight display |
||
Power |
Works with APS768x intrinsically safe power supply. 120 VAC and 240 VAC models available. Harsh environment/analog model compatible with external NiMH battery pack, when optional IND560x-Power Adapter Board (PAB) is installed |
||
Keypad |
Power on/off. Clear, Tare, Print, Zero. Numeric keys. Navigation keyset. 5 softkeys |
||
Scale types |
Supports single scale interface: Analog scale, 5 VDC excitation, up to 4 x 350W load cells (87Ω minimum resistance), 2 or 3 mV/V, 100,000d maximum resolution IDNet scale, current high-precision TBrick-Ex bases |
||
Calibration |
Separate single-step Zero and Span, available 5-point linearity adjustment, step calibration or CalFREE™ (no test weights needed). Program and save a 25-step calibration test sequence for guaranteed repeatability. Configurable calibration expiration and email alerts available |
||
Update Rates |
A/D conversion ≤366 Hz. Target up to 50 Hz. PLC up to 20 Hz. Discrete I/O up to 25 Hz |
||
Serial connectivity |
Standard: One standard intrinsically safe RS-232 port (COM1). Optional COM4/COM5: Bi-directional, dual-channel fiber optic or intrinsically safe current loop interface for communication to safe area |
||
Peripheralcommunication devices |
Fiber optic or current loop connection to ACM500 in safe area; Current loop connection to ACM200 in safe area; Fiber optic connection to legacy METTLER TOLEDO fiber optic converter Can operate as a remote display for other terminals in Ex or safe area |
||
Supportedcommunication* |
Serial (RS-232/422/485), Ethernet 10 Base-T, PLC (A-B RIO, Analog Output, DeviceNet, PROFIBUS DP, EtherNet/IP, Modbus TCP) Inputs: ASCIII, CPTZ, SICS Level 0/1, Remote display Outputs: METTLER TOLEDO Continuous, Demand, Continuous template, 5 configurable templates * Some communication options only available with ACM500 |
||
I/O |
Internal solid state discrete I/O options offer a total of 4 inputs and 6 outputs. Choose from one of three options: Active Inputs/Active Outputs, Active Inputs/Passive Outputs, Passive Inputs/Passive Outputs - Active Inputs are powered internally by the IND560x and are designed for use with simple hazardous area switches - Active Outputs are powered internally by the IND560x and provide 12 VDC switching at 50 mA total. These are intended for use with low-power, intrinsically safe solenoids - Passive Inputs and Passive Outputs require power to be provided externally through an appropriate barrier. Entity parameters must be confirmed Total I/O control expandable to 12 inputs and 18 outputs using ARM100 modules and RS-485 from the ACM500 |
||
Ex approvals |
US: IS, Class I, II, III; Div 1; Groups A-G T4 Ta = -10°C to +40°C; IP65; Type 4 I/1/AEx ib IIC T4 Control drawing 72191600 Canada: IS, Class I, II, III; Div 1; Groups A-G T4 Ta = -10°C to +40°C; IP65; Control drawing 72191600 |
ATEX: Certificate BVS 09 ATEX E 010 and first supplement II 2 G Ex ib [op is Ga] IIC T4 Gb II 2 D Ex ib [op is Da] IIC T60°C Db IP65 |
IECEx Certificate IECEx BVS 10.0096X Ex ib [op is Ga] IIC T4 Gb Ex ib [op is Da] IIIC T60°C Db IP65 |
Weights and measures approvals |
USA: Class II, 100,000d; Class III/IIIL, 10,000d; CoC #05-0572A4 Canada: Class II, 100,000d; Class III, 10,000d; Class IIIHD, 20,000d; AM-5593 Rev 3 Europe: Class II, resolution determined by platform approval; Class III, 10,000e; TC6812 Rev 9 MID: Catchweighing − T10230; Gravimetric Filling − T10231 |
