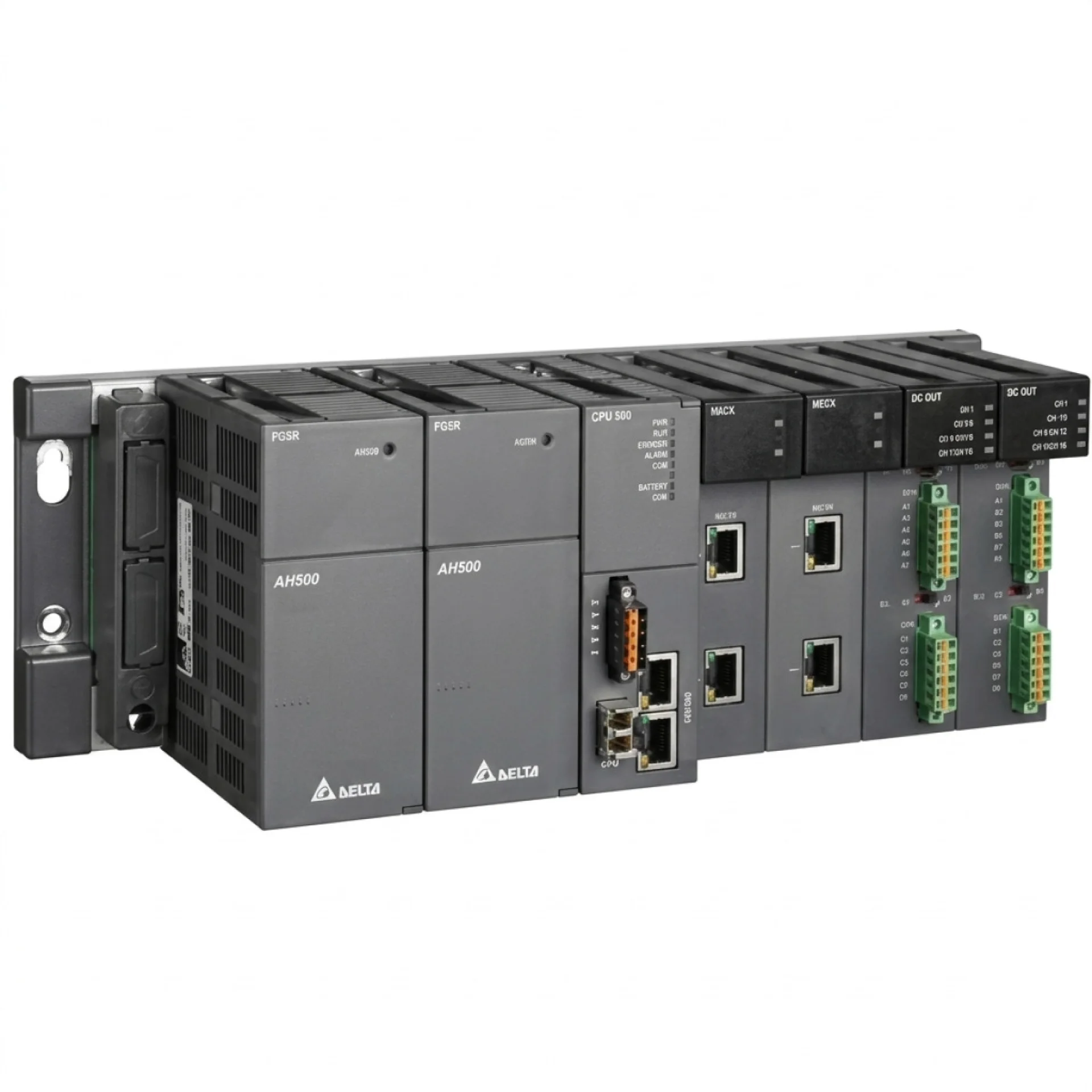

| Redundant CPU |
| |
| – |
The redundant CPU of the AH Series adopts a reliable redundancy structure, and integrates synchronous modules, Ethernet ports and serial communication interfaces for a more competitive control solution. |
| – |
|
|
|
| |
| |
Redundant Backplane |
| |
| – |
The redundant backplane of the AH Series provides redundant power supply and communication interfaces for a complete control solution. |
| – |
|
| – |
|
|
|
| |
|
| |
| |
|
| |
| – |
Public construction, water treatment, large factory monitoring system |
|
|
| |
|
|
|
| |
|
|
| |
|
|
| |
| |
|
| |
| |
| – |
Utilizes 32-bit processor |
| |
| |
| – |
Excellent program execution speed：LD instruction execution speed 0.02µs |
| |
| |
| – |
Max. I/O points:
– DIO: Max. 4,352 points
– AIO: Max. 544 channels
– RIO>100,000 points |
| |
| |
| – |
Program capacity：Max 1M steps (4MB) |
| |
| |
| – |
Data register (D+L) 512 words |
| |
| |
| – |
Built-in RS-232/485 multi-modes communication port x1 (RS-232:115.2kbps/ RS-485: 921.6kbps) |
| |
| |
| – |
Built-in Ethernet communication port (100Mbps) |
| |
| |
| – |
Built-in SD card slot (supports max. 32GB) |
| |
| |
| – |
Built-in Mini-USB programming port |
| |
| |
| – |
System diagnosis /status light/online editing and debug functions |
| |
| |
| – |
PLC Link automatic data exchange function |
| |
| |
| – |
MODBUS RTU/ASCII, MODBUS TCP |
| |
| |
| – |
EtherNet/IP
– Scanner & Adapter mode
– Supports I/O connection & explicit message
– Connections: TCP = 128; CIP = 256
– RPI: 1~1,000ms
– 250 words /connection
– LD/SFC/FBD/IL/ST languages |
| |
| |
| – |
256 interrupts (Timed/IO/External/ Low voltage/Communication) |
| |
| |
| – |
Redundant mode only supports timed interrupt |
| |
| |
| – |
2048 timers and counters |
| |
| |
| – |
RTC function (max. 30 days after power off) |
| |
| |
| – |
NTP network time correction function |
| |
| |
| – |
WEB/E-mail/IP Filter function |
| |
| |
| – |
Supports redundant system
– CPU switch-over time: 20ms
– Built-in sync. Modul- |
|
|
|
|
