APACHE portal movable
Tekerlekli dizaynı ve seyyar yapısı ile işletme içinde
kolayca yer değiştirebilir.
APACHE portal multi-zone
Hızlı yükleme işlemlerinde, tek alanda ölçüm için
yükün konulması ve kaldırılmasından kaybedilen
zamanı azaltır ve birden fazla ölçümün aynı anda
yapılması önemli maliyet tasarrufu sağlar.
APACHE portal first choice
Kompakt, sağlam yapısı ve kolay kurulumu ile boyut
ölçümünde dönemsel yer değiştirme imkânı sağlar.
Temel boyut ve ağırlık ölçüm işlemlerini serisinin
diğer sistemleri hassasiyeti ile yapma özelliğine sahiptir.

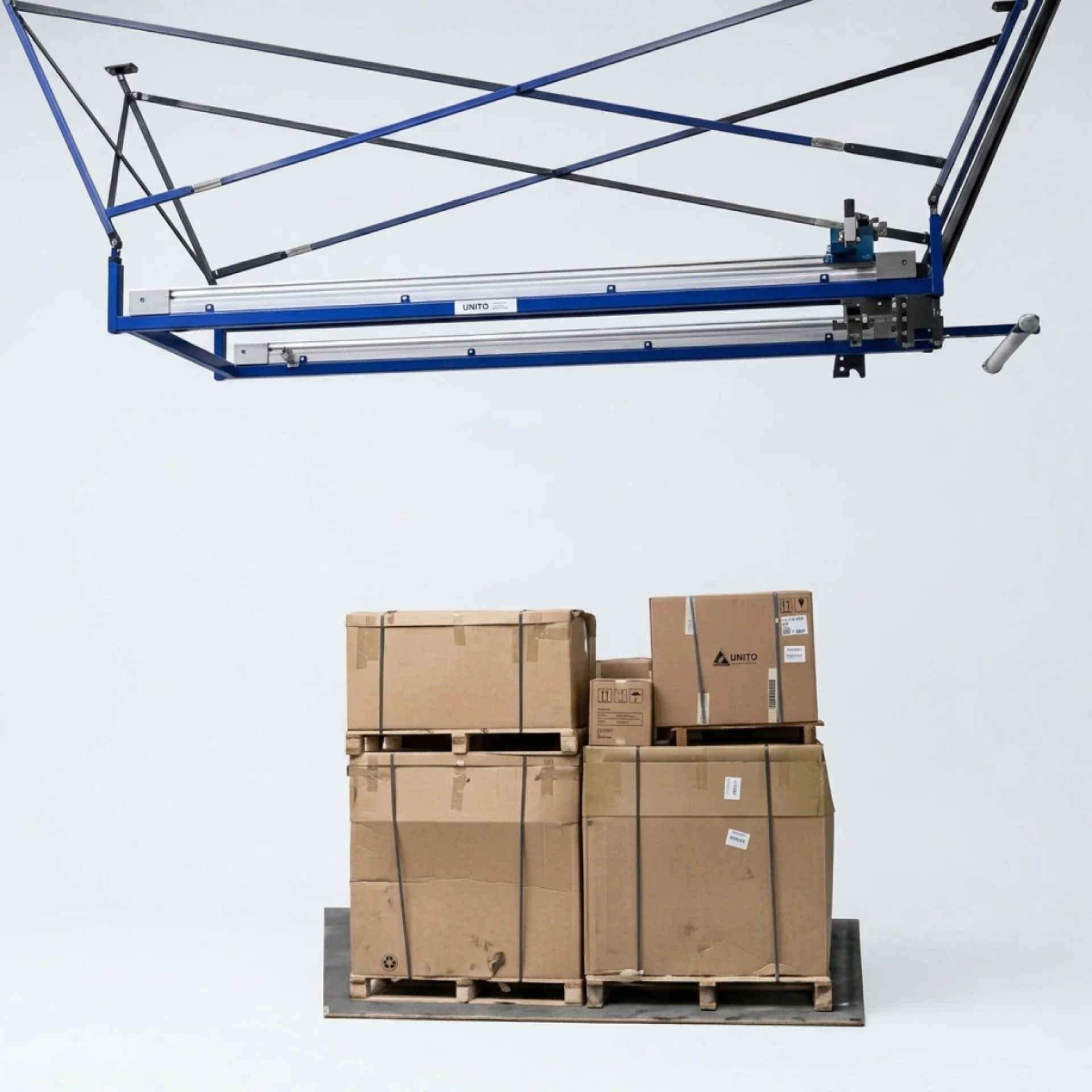

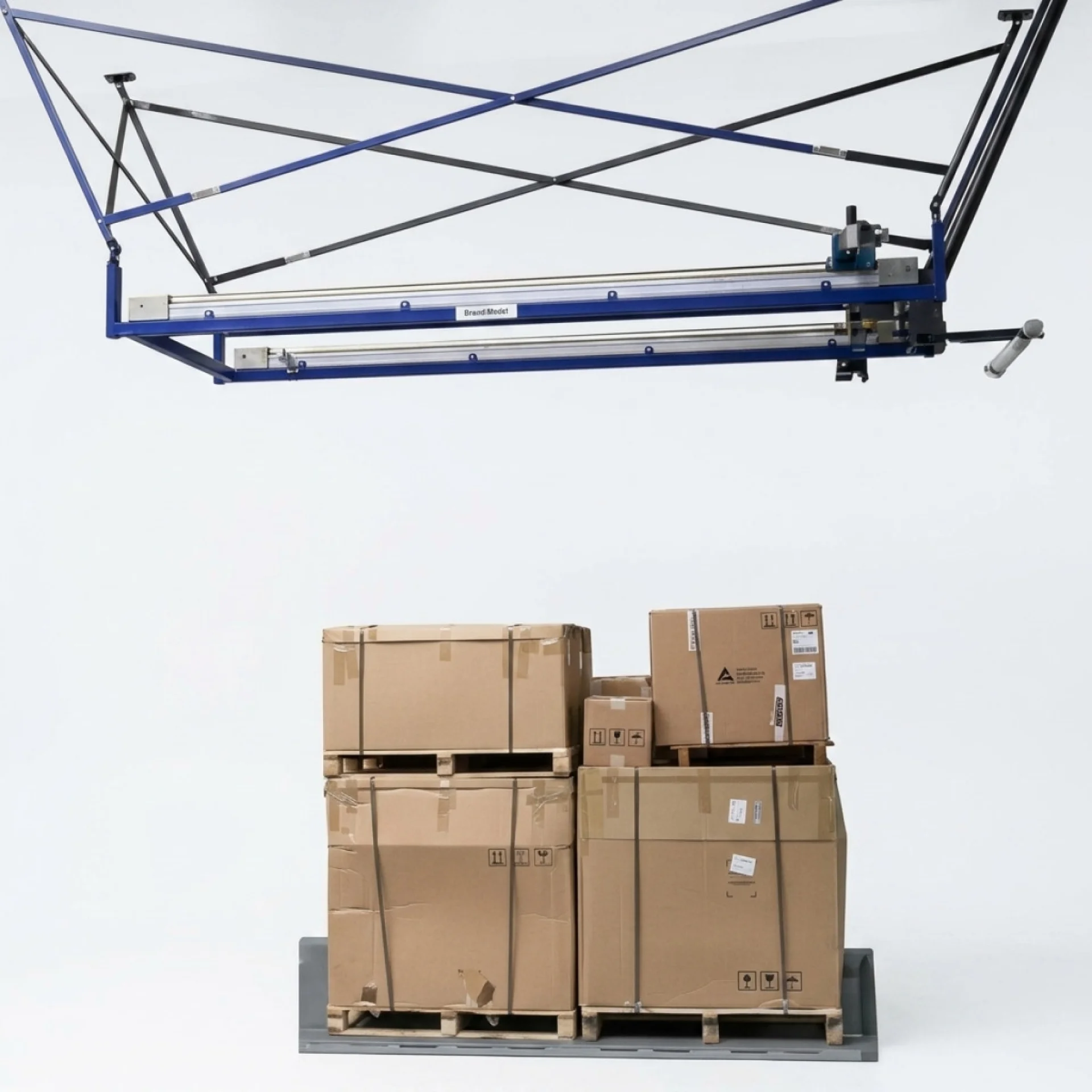

AKL-Tec firmasının özellikle navlun taşımacılığı için dizayn ettiği APACHE Portal Boyut Ölçüm Sistemi, uzun yıllardan beri lojistik sektöründe başarı ile kullanılmaktadır. Sistem dört mesnetli bir konstrüksiyon üzerine oturtulmuş iki adet hareketli kızılötesi okuyucu ile çalışmaktadır.
Yük, kontrol sisteminin altına forklift, transpalet veya benzeri bir taşıyıcı ile getirilerek yerleştirildikten sonra APACHE PORTAL tabiri caizse kartal gözleriyle yükün boyutlarını, ağırlığını ölçerek fotoğraflar ve gerekli olan belgelerde kullanılmak üzere kaydeder.
APACHE PORTAL lojistik sektöründe faaliyet gösteren firmalara doğru yük bilgisini sağlamasıyla yükün hatalı beyanını önleyerek her türlü işlemin doğru ve zamanında yapılmasını sağlamaktadır. Bu aynı zamanda işveren ve işgören arasında olası anlaşmazlıkları önleyerek işlerin sorunsuz bir şeklide yürütülmesine imkân sağlar.
Örneğin, eğer yük beyan edilenden farklı özelliklere (bulk, daha ağır ya da farklı boyutta) sahip olduğu kayıt altına alındığında zaman kaybetmeden düzeltilmesi için fırsat elde edilecektir. Bu da ilave maliyetlerin önlenerek firmaların karlılığını artıracaktır.
imensions ( Length x Width x Height ) |
360 cm (or 460 cm) x 330 cm x 340 cm The dimensions apply to an APACHE portal movable system with a measuring area of 2.5 m x 2.5 m or 2.5 m x 3.5 m. The dimensions of an APACHE portal system depend on the mount of choice (ceiling, wall, free-standing). |
Measuring Area | 250 cm x 250 cm or 350 cm x 250 cm. The maximum measuring area is determined by the travel length of the measuring beam. |
Measuring Height | Maximum 280 cm |
Speed of Movement | The measuring axis moves at a constant speed of 20 m/min |
Method of Measurement | Two infrared scanners (fan scanners) are driven on two linear guides over the freight and load carrier to be measured. Movement is tracked with an incremental encoder. Over the run, the heads perform gapless scanning. |
Measurement Uncertainty (MPE) |
Length, width of the smallest enclosing cuboid (covering box) 2 cm |
Height of the smallest enclosing cuboid 1 cm |
|
Division | Length = 2 cm, Width = 2 cm, Height = 1 cm |
Weighing | In the form of a weighing platform as a rule. Weighing platform 250 cm x 250 cm or 250 cm x 200 cm or 200 cm x 200 cm The platform size, material load, weighing range and resolution can vary. The technical data of the weighing station must be taken from the weighing station manufacturer’s technical documentation. |
Limitations/Exclusions | Measurement of non-transparent, i.e. opaque, objects only. Measurement of dimensionally stable / form-stable objects only. |
Protrusion | Protrusions on the object smaller than 4 cm in length and width, or 1 cm in height are ignored when measuring the smallest enclosing cuboid. |
Connectability of Weighing Station |
Legal and type-examination tested weighing stations according to OIML R76 and MID. Display unit with serial data interface (RS232, RS422, RS485) Display equipment that performs a standstill check before data output |
Computer Platform (IPC) |
Analytical computer APACHE portal with Windows XP ® |
Communication | TCP/IP Ethernet 10/100 over RJ45 plug, RS232 / RS422 over D-SUB plug. |
Operating panel | Touch panel as user input interface for secondary data. Visualization of measurement results and images. |
Power connection (APACHE portal) |
230VAC, 16A in terminal compartment; access through switch cabinet socket Standard: Not over protective circuit interrupter |
Power connection (APACHE portal moveable) |
230VAC, 16A earthed/grounded plug with transformer also after protective circuit interrupter |
IT Connection | 10/100 Mbit/s Standard: 2 x RJ45 sockets on computer Alternative: Patch socket in switch cabinet Alternative: RJ45 socket (CAT.5) in the side wall Alternative: WLAN 802.11a-g |
IPC | Intel CoreDuo with 1.66 GHz 1024 MB DDR2 SO-DIMM 80 GB 2.5" hard disk 24 VDC power supply 2 x 10/100 Mbit/s Ethernet 2 x USB 2.0 1 x PS/2 for KB and Mouse 2 x RS232 |
Operating Conditions | Operating Temperature: 0° C to +40° C (+32° F to +104° F) |
Humidity: maximum 85% non- condensing | |
Transport options (APACHE portal movable only) |
Folding stand and option for transporting in a truck swap- body. |
MTBF | Mean time between failures of the laser probes is 40,000 h according to the manufacturer’s specifications. The service life of the laser diode has been taken into account in this value |
