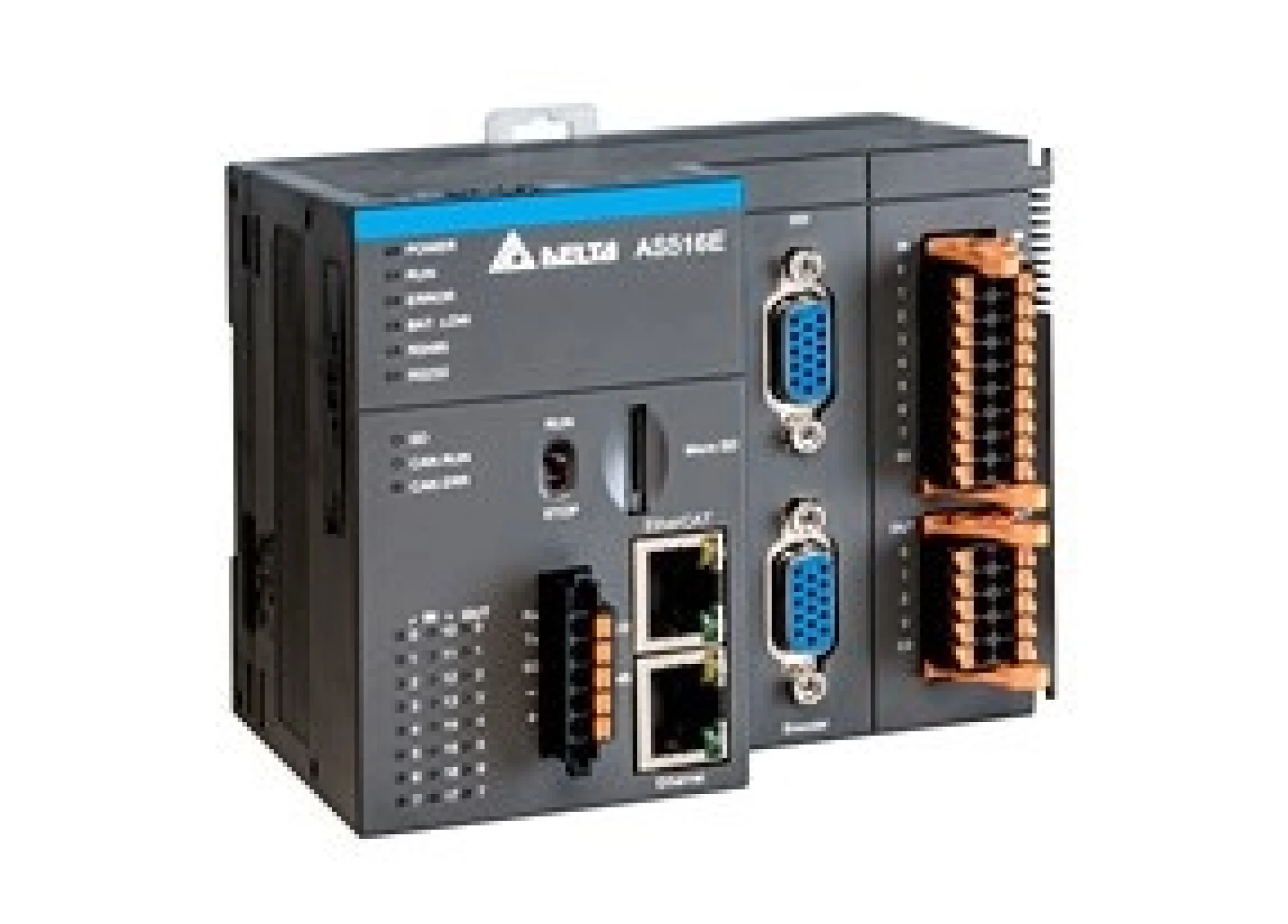

AS Serisi Motion CPU

AS Serisi Motion CPU

AS serisi motion CPU’su, EtherCAT / CANopen hareket kontrol arayüzü ve çoklu iletişim portlarına sahiptir.
Aynı zamanda uluslararası standartlara uygun motion kontrol fonksiyon blokları sunar ve bir sistemde 16/24 gerçek ekseni senkronize eder.

AS serisi motion CPU’lar, Ağaç işleme, Paketleme, Baskı, Etiketleme,Tekstil ve İlaç endüstrileri gibi çeşitli otomatik ekipmanlarda yaygın olarak kullanılmaktadır.

Özellikler

Specifications

• Motion Control Network:
  • AS516E: EtherCAT (100 Mbps)
  • AS524C: CANopen DSP402 (1 Mbps)
• Controllable Axes/Time: Up to 32 axes can be synchronized including virtual axes
  • AS516E(EtherCAT): 16 axes/1ms; max. 16 real axes
  • AS524C(CANopen): 4 axes/2ms, 8 axes/4ms; max. 24 real axes
• E-CAM function:
  • Number of E-CAM table: 64
  • Data points of single E-CAM: 2048
• Program/Performance:
  • Program: 20 MB; Symbol: 20 MB: G code: 256KB
  • 1GHz high-speed processor supports high-precision computing for 64-bit LREAL data(Double-precision floating-point format)
• Communication:
  • Programming/serial communication ports: USB(2.0)/RS232/RS485
  • CANopen port: 1 (DS301 master/slave)
  • Ethernet port: 1 (AS516E) / 2(AS524C); supporting MODBUS TCP (Server/Client) and Ethernet/IP(Adapter)
• I/O Interface:
  • Built-in 2 incremental encoder interfaces and 1 SSI absolute encoder interface
  • Onboard I/O: 16DI(supports interrupts) / 8DO
  • Max. I/O: 1,024
  • Module expansion: max. 32 (analog modules: max.16)
• Built-in Mini SD card slot
• Supports RTC function (CR1620 3V battery is required)

Features & Benefits

• Up to 32 axes can be synchronized (including virtual axes)
  • AS516E(EtherCAT): 16 axes/1ms, max. 16 real axes
  • AS524C(CANopen): 4 axes/2ms, max. 24 real axes
• Offers motion function blocks complying with international standards, supporting Jerk and BufferMode to enable non-stop operation between motion paths
• Supports encoder axes and virtual axes. No need to purchase additional encoder modules Easy-to-use basic motion control features:
  • Single-axis speed/position/homing/torque control commands
• Advanced motion features to fulfill complex processing requirements:
  • Electronic gear, electronic cam and rotary cut applications function blocks
  • G code/group axes commands: supports up to 8-axis linear/arc/helical interpolation
• Supports AS series I/O modules with faster I/O response to CPU
• Control program compatible with new generation DVP-MC series motion CPU, making effortless platform transition between DVP and AS motion controllers
• Supports 3-party EtherCAT slaves (AS516E*), allowing a more flexible system structure

Modeller ve Seçenekler

EK MODÜLLER

Specifications

• Digital I/O modules (output/input/mix): 8 , 16 , 32 , 64 I/O
• Analog I/O modules (output/input/mix): 4 channel, 8 channel inputs(16-bit) /outputs(12-bit)
• Temperature measurement modules: conversion time 200ms/channel, overall accuracy+/-0.1%, resolution0.1°C / 0.1°F(24-bit), RTD inputs: Pt100, Pt1000, Ni100, Ni1000, Cu50, Cu100, JPt100, LG-Ni1000, 0~300Ω or 0~3000Ω, thermocouple inputs: J, K, R, S, T, E, N, B type
• Load cell modules: independent dual-channel high speed high accuracy load cell modules with 24 bit resolution with 2.5ms response rate
• Communication modules (function cards): communication module and CPU support RS-232, RS-422, RS-485, Ethernet, CANopen communication
