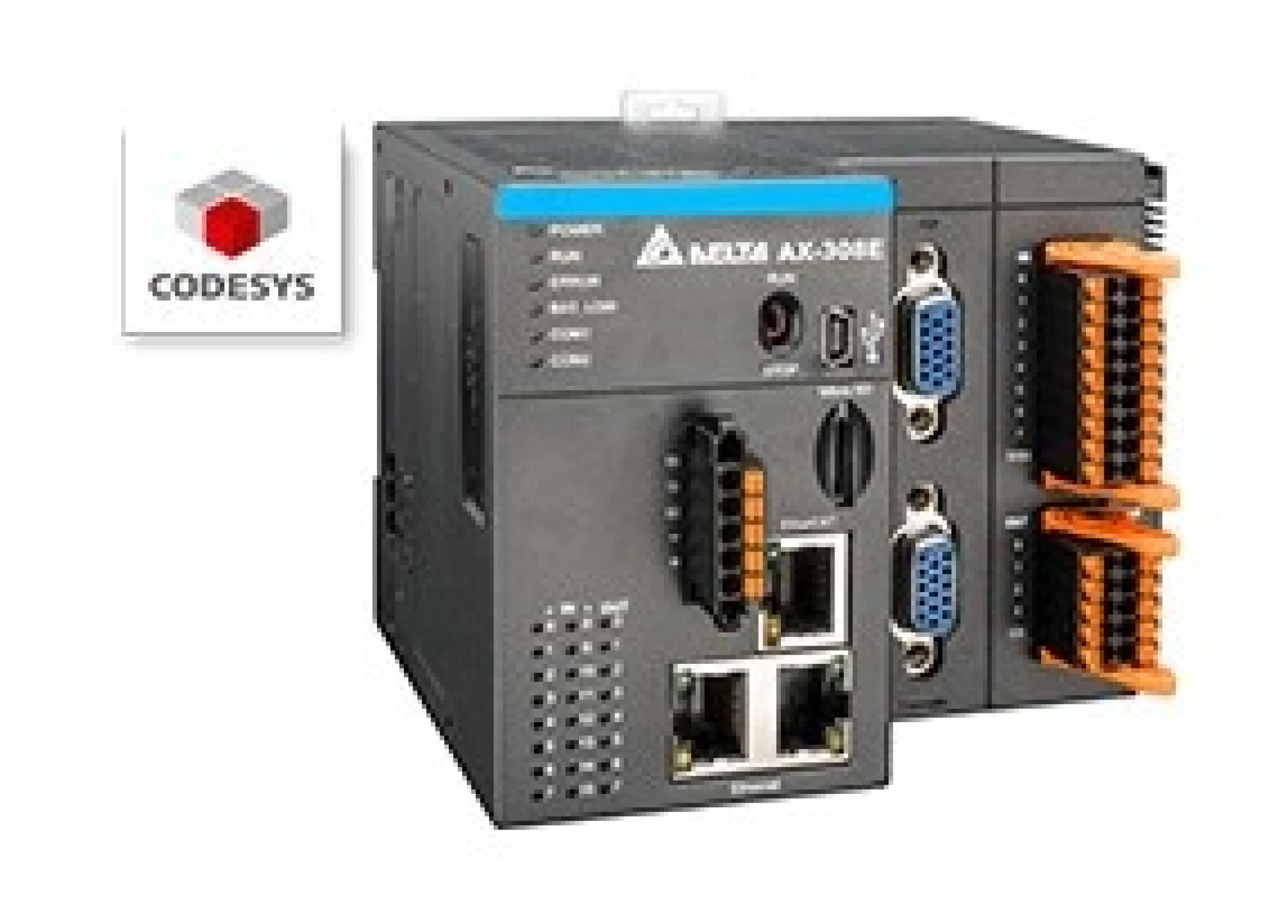

AX-3 Serisi Motion CPU
CODESYS platformuna uygun ve hem motion hem de logic kontrol uygulamalarını destekler. Ayrıca uluslararası standartlara uygun motion kontrol fonksiyon blokları sunar ve 8 gerçek eksene kadar destekler.
AX-3 Serisi Motion CPU’lar, Ağaç işleme, Paketleme, Baskı, Etiketleme, Tekstil ve İlaç endüstrilerinde kullanılan çeşitli otomatik ekipmanlarda yaygın olarak kullanılmaktadır.
Özellikler
Features & Benefits
- 8 axes EtherCAT motion controller with min. 2 ms synchronization time
- Adapts the IEC 61131 compliant CODESYS software platform for equipment automation integration
- Supports AS Series PLC I/O modules and allows flexible scalability
- Built-in Ethernet (* 2) / RS-485 / RS-232 encoder interfaces to connect various devices at the same time
- Integrated software platform provides a standardized programming and controller development environment, offering various tools for motion control including PLCopen MC function block, E-CAM editor, positioning planning chart, and many more
- Supports IEC 61131-3 programming languages for user-friendly configuration, including FBD, LD, ST, SFC, and CFC
- Supports OPC UA protocol (server), no need for an OPC UA gateway to connect a management system
Specifications
- Motion Control Network
- – AX-308E: EtherCAT (100 Mbps)
- Multi-axis synchronization and sync. time: Up to 16 axes (virtual axes, real axes and pulse-train axes combined)
- – 8 axes in 2 ms (max. 8 real axes via EtherCAT)
- – Max. 4 pulse-train axes
- E-CAM function – Number of E-CAM table: 80
- – Data points of single E-CAM: 256
- Program/Performance
- – Program: 8 MB / Symbol (retain): 768 kbps; Symbol (non-retain): 16 MB
- – LD execution time: 5 ns / Arithmetic instructions (LREAL data type): 36 ns
- Communication – Programming / serial communication ports: Mini USB (2.0) / RS232 / RS485 – 2 Ethernet ports: Modbus TCP (Server + Client = 32) and EtherNet/IP (Scanner/Adapter, Scanner mode supports up to 8 Adapters)
- I/O Interface
- – Built-in 2 incremental encoder interfaces and 1 SSI absolute encoder interface
- – Built-in 6 x 200 kHz high speed counter and 4 x 200 kHz pulse-train output channels
- – Max. I/O: Input 8,192 bytes / Output: 8,192 bytes
- – Module expansion max. 32 (analog modules: max.16)
- Built-in Micro SD card slot
- Supports RTC function (CR1620 3V battery is required)
Modeller ve Seçenekler
EK MODÜLLER
Specifications
- Digital I/O modules (output/input/mix): 8 , 16 , 32 , 64 I/O
- Analog I/O modules (output/input/mix): 4 channel, 8 channel inputs(16-bit) /outputs(12-bit)
- Temperature measurement modules: conversion time 200ms/channel, overall accuracy+/-0.1%, resolution0.1°C / 0.1°F(24-bit), RTD inputs: Pt100, Pt1000, Ni100, Ni1000, Cu50, Cu100, JPt100, LG-Ni1000, 0~300Ω or 0~3000Ω, thermocouple inputs: J, K, R, S, T, E, N, B type
- Load cell modules: independent dual-channel high speed high accuracy load cell modules with 24 bit resolution with 2.5ms response rate
- Communication modules (function cards): communication module and CPU support RS-232, RS-422, RS-485, Ethernet, CANopen communication
