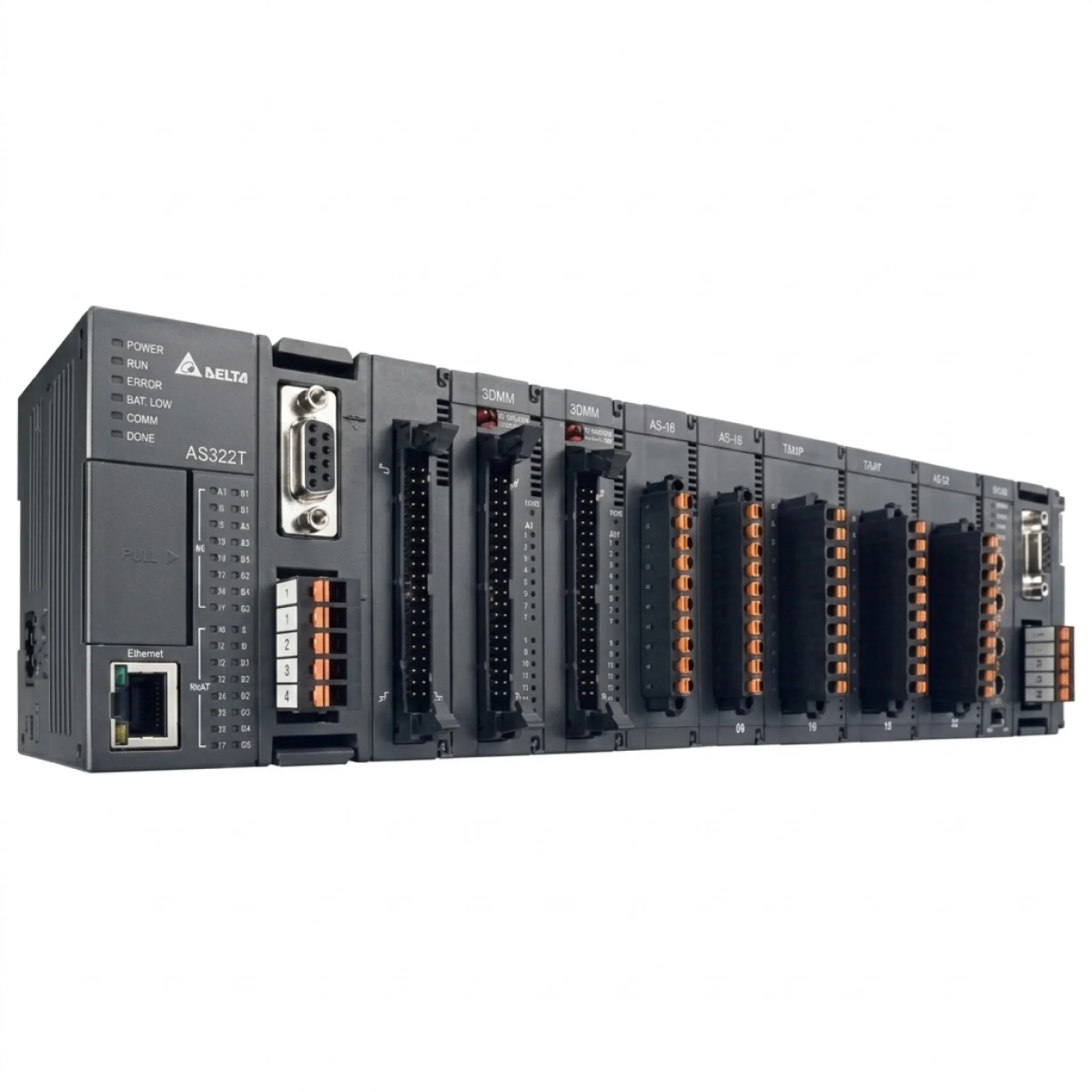

The Delta Compact Modular Mid-range PLC AS Series is a high performance multi-purpose controller designed for all kinds of automated equipment. It features Delta’s self-developed 32-bit SoC CPUs for enhanced execution speed (40 k steps/ms) and supports up to 32 extension modules or up to 1,024 inputs/outputs. The AS series provides accurate positioning control for up to 8 axes via CANopen motion network and max. 6 axes via pulse control (200 kHz). It is widely used in diverse automated equipment such as electronics manufacturing, labeling, food packaging, and textile machines.
| |
| –
–
|
New 32-bit SoC (System on Chip) CPU to enhance execution speed（40 k steps / ms）
Positioning control function for up to 8-axis motion control via CANopen / 6-axis 200 kHz pulse control
|
| – |
Robust non-backplane design and patented DIN rail clips for vertical module installation and replacement |
| – |
ISPSoft editing software for programming, hardware configuration, network communication, system diagnostics and positioning planning |
| |
| – |
Program capacity: 128k steps |
| |
| |
| – |
Data registers: 60k words |
| |
| |
| – |
Extension modules: max. 32 (analog modules: max.16 / communication modules: max. 4) |
| |
| |
| – |
Execution speed: up to 40 k steps / ms |
| |
| |
| – Basic instruction (LD): 25 ns |
| |
| |
| – Application instruction (MOV): 0.15 μs |
| |
| |
| – |
Abundant selection of DIO modules, AIO modules, temperature modules, load cell module and function cards. |
