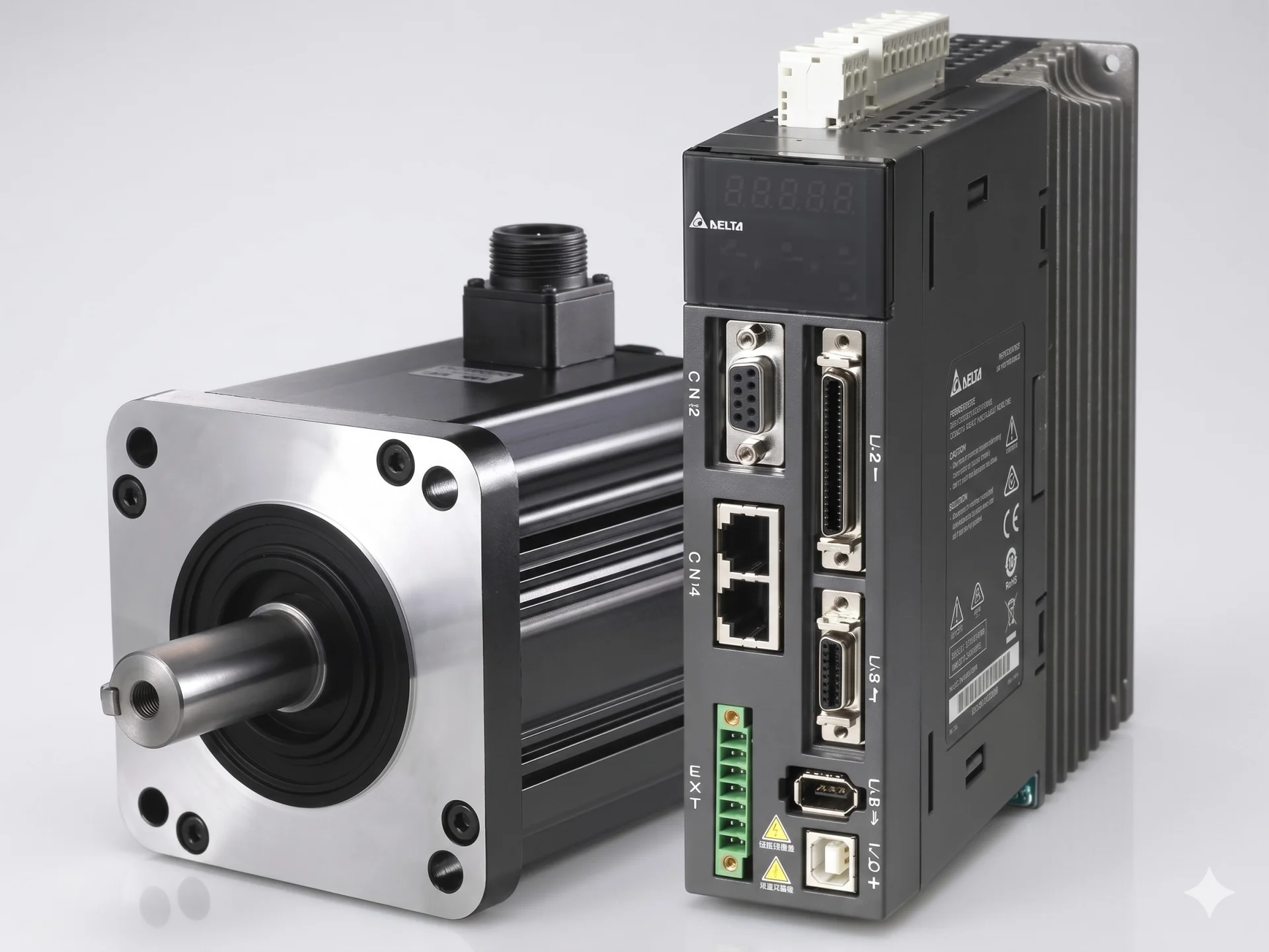

ASDA-A2 Servo Motor ve Sürücüler

Endüstriyel otomasyondaki hareket kontrol uygulamalarının zorlu gereksinimlerini karşılamak ve makine tasarımcıları...
Ürün Kodu: Kategori: delta-ac-servo-motor-ve-suruculer Kullanma Kılavuzu: Ürüne ait PDF indirmek için üye olmanız gerekmektedir
Ürün Açıklaması

Endüstriyel otomasyondaki hareket kontrol uygulamalarının zorlu gereksinimlerini karşılamak ve makine tasarımcıları ve sistem entegratörleri tarafından talep edilen yüksek hassasiyetli konumlandırma kontrolünün ihtiyaçlarını karşılamak üzere Delta, 2009’da ASDA-A2 serisi servo motorlar ve servo sürücüler için yüksek performanslı hareket kontrolünü başlattı.









There are five models of ASDA-A2 series: ASDA-A2-L, ASDA-A2-M, ASDA-A2-F, ASDA-A2-U, ASDA-A2-E




ASDA-A2-L
(Full-close Control)

ASDA-A2-M
(CANopen)

ASDA-A2-F
(DMCNET)

ASDA-A2-U
(Internal Position Control)

ASDA-A2-E
STO Safety Function
(EtherCAT)


  High Precision Control


ECMA serisi servo motorlar, 20 bit çözünürlükte (1280000 pulsler/ devir) incremental enkodere sahiptir. Hassas süreçten gelen gereksinimleri karşılamak için mevcut fonksiyonlar geliştirilmiştir. Düşük hızda stabil rotasyon da sağlanmıştır.


1 kHz frekansa kadar cevap. 1 ms





  Mükemmel Vibrasyon Bastırma


Yerleşik otomatik düşük frekanslı vibrasyon bastırma (vinç kontrolü için): Makine kenarlarındaki titreşimi otomatik olarak ve yeterli düzeyde en aza indirgemek için iki vibrasyon bastırma filtresi sağlanmıştır.






  Built-in automatic high-frequency resonance suppression: two auto notch filters are provided to suppress the mechanical resonance automatically.




  Esnek Internal Position Modu (Pr Mode)


ASDA-A2-Soft configuration software provides internal parameter editing function for defining the path of each axis freely.


64 internal position settings are offered for continuous motion control.


Destination position, speed and acceleration & deceleration commands could be changed in the middle of operation.


35 kinds of homing modes are available.





  Unique Built-in Electronic Cam (E-CAM)


Up to 720 E-CAM points.


Smooth interpolation between points can be completed automatically to yield a flexible programming.


ASDA-A2-Soft configuration software provides electronic cam (E-CAM) profile editing function.


Applicable for rotary cutoff and flying shear applications.





  Full Closed-loop Control (Capable of reading second feedback signals)


Built-in position feedback interface (CN5) is able to read second feedback signals from motor encoder and send the current position back to the drive to form a full closed-loop so that high accuracy position control can be accomplished.


Reduce the effects of mechanical imperfections such as backlash and flexibility to ensure the position precision at machine edges.




  Features of ASDA-A2-M:


CANbus communication speed is 1M bps, in comply with CANopen DS301 standard.


3 CANmotion modes (Profile Position Mode, Interpolation Position Mode, Homing Mode) are provided for CANopen DS402 standard. Max. length of the communication cable can reach up to 40m (when using standard communication cable).


Station configuration can be set via parameter settings.


In conjunction with Delta’s PLC, it is able to save the wiring and establish Delta fieldbus system configuration.





  Features of ASDA-A2-U:


Max. 14 digital inputs.


Using powerful “Pr mode” is able to perform complex motions.


Quick connector is available for easy installation and use.


Built-in DC 24V power supply is provided to simplify the wiring and save space.

  Features of ASDA-A2-E :


Touch probe function can be enabled with two dedicated Digital Inputs (DI) on CN7 or the external encoder.


Integrated Safe Torque Off (STO) safety function according to the standards of EN 61800-5-2; IEC 61508, SIL2; IEC 62061, SIL2; ISO 13849-1, Cat.3 ,PL=d


Wide power range coverage in both 220V and 400V


Supports full-closed loop control


Supports absolute type and incremental type ECMA Series servo motors










  • Hassas oyma makinesi
  • recise torna / freze makinesi
  • çift kolonlu işleme merkezi
  • TFT LCD kesme makinası
  • robot kolu
  • IC paketleme makinesi
  • yüksek hızlı paketleme makinesi
  • CNC işleme ekipmanları
  • enjeksiyon işleme ekipmanları
  • etiket yerleştirme makinesi
  • gıda paketleme makinası
  • baskı



Teknik Özellikler
